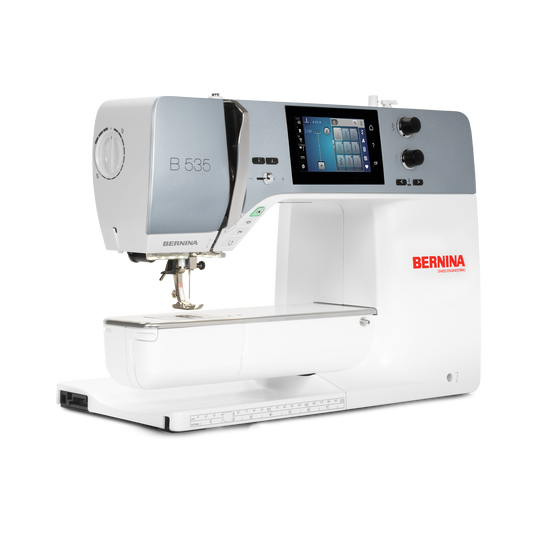

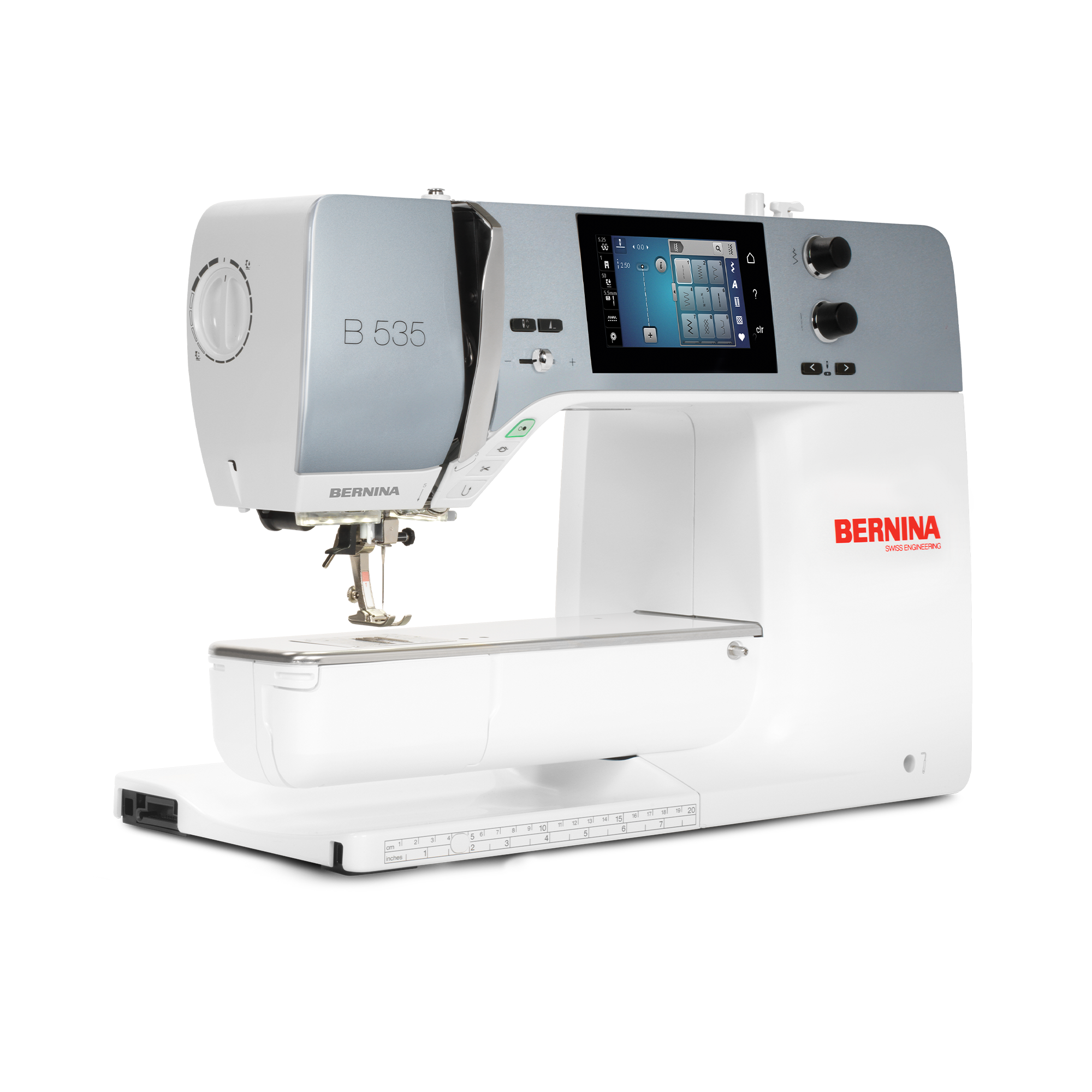

BERNINA 535
Item No. 0195359006
2'595.00 CHF
Availability in online store:
  • In Stock

BERNINA 535
Item No. 0195359006

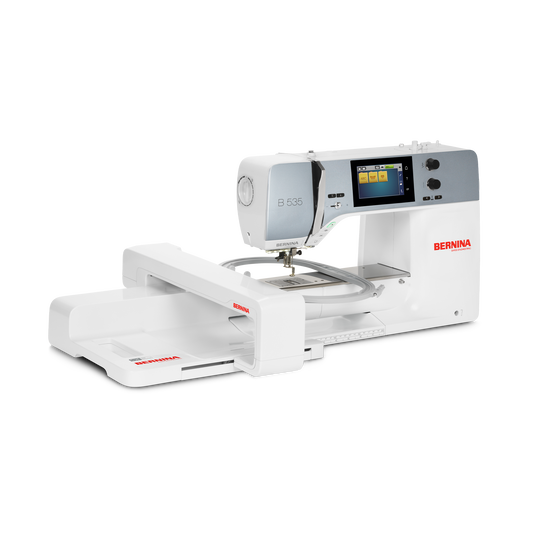

BERNINA 535 image number

Product Description


Description

5.5 mm stitch width for all your clothing and accessory projects - can be extended to an embroidery machine

Features

  • Perfect stitch quality
  • Powerful, fast & precise sewing
  • Handle big projects with ease
  • Your threads are cut automatically
  • Add an embroidery module if you want
null

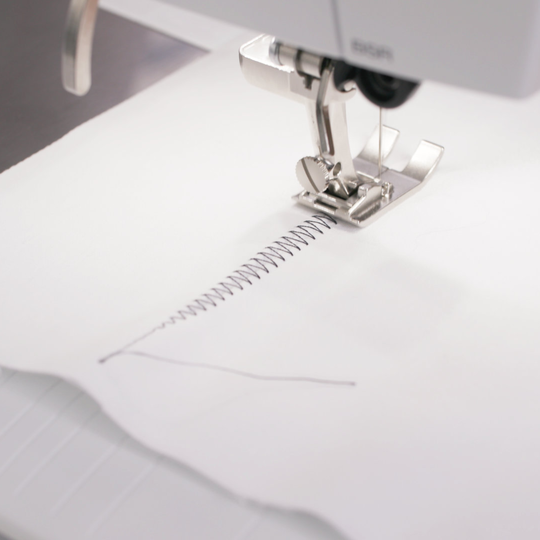

Perfect tension for perfect stitches

  • Precise & powerful sewing
  • Just sew without any worries
  • Achieve beautiful stitch results

Thanks to the Adaptive Thread Tension you get optimal thread tension for perfect stitch quality on both sides of the fabric.

null

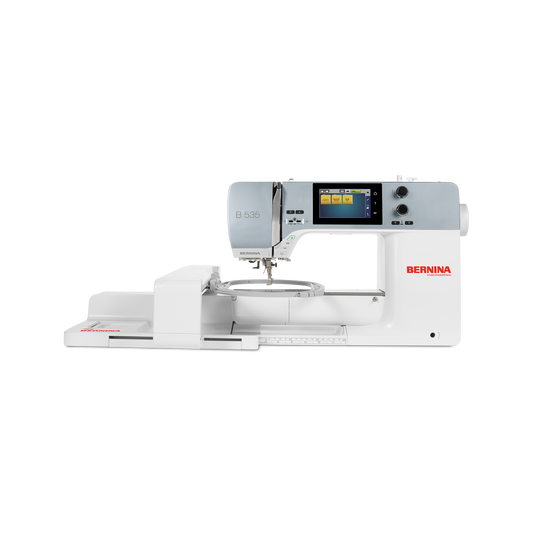

More space for creative freedom

  • Realize big projects with ease
  • Enough space for your creations
  • Embroidery module optional

The extended freearm offers 8.5" right of the needle. Therefore you will enjoy a grand sewing area for grand ideas.

null

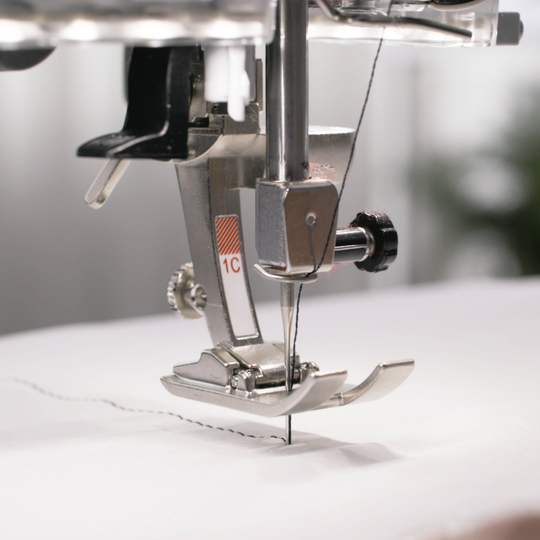

Get the right pressure everytime

  • Sew any material with ease
  • Increase pressure for thin materials
  • Reduce pressure for thick materials

Ensures that the ideal pressure is always used for the selected stitch. The basic setting can be individually adjusted.

null

Ask your on-screen support

  • Modern colorful touch screen
  • Easy to use with simple navigation
  • On-screen support when needed

The Sewing Consultant helps you to find the right settings. Adjust suggested alterations quickly with the multifunction-knobs.

null

Sew quieter, faster, longer, better

  • Sew perfect stitches with 5.5 mm stitch width
  • Jumbo bobbin to sew longer
  • Frontload the bobbin with new thread

The BERNINA Hook keeps the stitches consistent and precise with a maximum speed of 1,000 stitches per minute.

null

Automatic features save time

  • No manual thread cutting
  • Press a button to cut your thread
  • Save time for your creativity

Thanks to the automatic thread cutter your threads are cut automatically and the needle will be lifted afterwards.


Features and Functions

BERNINA 535
Important
We reserve the right to make changes to the equipment and design.
Freearm length to the right of the needle [inch / mm]
215.8 mm
Adaptive thread tension, dynamic
Stitch width max [mm]
5.5 mm
Start-stop button
Restore last embroidery position
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Knee lever connection (FHS)
Bobbin winder, top of machine
Nadelstopp oben/unten, permanent (oben/unten)
Setup- Display settings - Display brightness
Setup- Information - Needle minder
Foot control with back-kick
Weight of embroidery module [lbs/kg]
4,000 g
Weight of the machine [kg]
11,000 g
Freearm length to the right of the needle [inch / mm]
215.8 mm
Workspace height [inch / mm]
109.22 mm
Total memory [MB]
256 MB
Spool holder [number]
2
Main motor, Type
DC
Separate bobbin winding motor
Hammer-mode for piercing force
Needle threading, semi-automatic
Automatic thread cutting system (upper and lower thread)
Adaptive thread tension, dynamic
Hook system
BERNINA
ECO function
Number of LEDs
12
Illumination above the needle
speed control
Sensor upper thread control
USB-Anschluss (Host)
Adjust stitch length
Balance forward / reverse feed
Pattern end
Adjust stitch width
Reverse sewing, permanent
Backstepping, permanent
Gesamtzahl der Knopflöcher
12
Buttonhole manual-multistep (man)
Buttonhole automatic with 3A feet (auto)
Button measuring function on screen
Buttonhole slit width adjustment
Securing stitch (stitch #5)
Needle positions (right / left) [number]
11
Memory (Kurzzeitspeicher)
Save settings of current stitch (permanent)
Add current stitch (personal program)
Import / export of stitches and stitch combination via USB (EXP format)
Presser foot recommended (display)
Save combination
Sewing stitches and characters in total [number]
1048
BSR functionality
BSR mode1
BSR mode 2
Creative consultant Sewing
Setup- Sewing - auto securing settings
Freearm circumference in the needle position [mm]
276 mm
Stitch width max [mm]
5.5 mm
Sewing speed maximum [spm]
1,000 spm
Delete by Swiping
Fit to window
Presser foot system
Full shank
Hopper mechanism
Start-stop button
Quick Reverse button (hand operated securing)
Practical Stitches
30
Quilting Stitches
45
Button Sew-On Program
1
Darning Programs
2
Freearm embroidery
Read competition embroidery formats (stitch based)
Save design
Restore last embroidery position
Hoop recognition
Absolute check
Mega Hoop functionality (6 x 15.7 inch / 400 x 150mm)
Midi Hoop Funktionalität (10,5 x 6,5 Zoll / 265 x 165mm)
Freearm Hoop functionality (5.7 x 10 inch / 145 x 255mm)
Clamp Hoop S functionality (6.5 x 6.5 inch / 165 x 165mm )
Check box
Basting stitch inside hoop / around design
Embroidery sequence control
CutWork Tool support
Built-in Embroidery alphabets (horizontal&vertical=1)
4
Built-in Embroidery designs
50
Move pattern
Resize pattern: proportional (limited to 80%-120%)
Resize pattern: non-proportional (limited to 80%-120%)
Stichdichte einstellen
Wordart
Combination of designs and lettering, embroidery
Change thread colours
Monochrom
Color resequencing
Setup- Embroidery - centering the embroidery motif / restore the original position
Setup- Embroidery - inch/mm switch
Setup- Embroidery - Thread cutter by colour change on/off
Setup- Embroidery - Thread cutter - set length of the jump stitch
Setup- Embroidery - Securing stitches manually /automatically
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Embroidery speed maximum [spm]
1,000 spm
Drag and drop, (swipe operation), embroidering
Slide-on table
Free Hand System (FHS) knee lifter
Dust brush
Needle assortment
Dust cover machine
Accessory box
Sewing speed minimum [spm]
100 spm
Thread cutter, head / left
