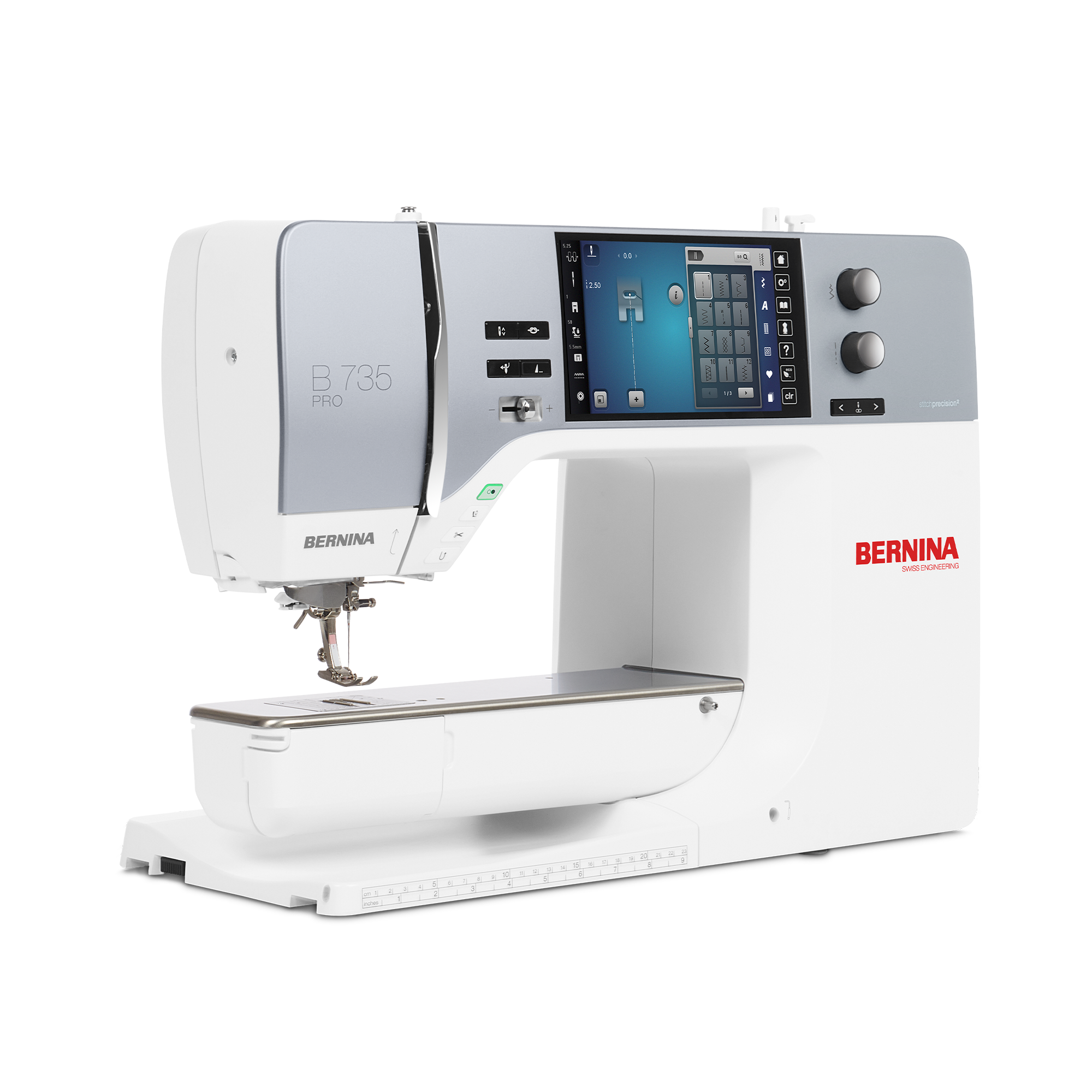

BERNINA 735 PRO
Item No. 0197389006
4'195.00 CHF
Availability in online store:
  • In Stock

BERNINA 735 PRO
Item No. 0197389006
BERNINA 735 PRO image number

Product Description


Description

Sew like a PRO


Features

  • Automatic Needle Threader
  • BERNINA Pinpoint Laser
  • Precise 5.5 mm Stitch Width
  • Walking Foot #50 included
  • Extra large 7" Color Touch Screen
null

Pinpoint Laser

  • Works in every needle position
  • Indicates the exact needle entry point
  • Next generation precision

Enjoy pinpoint precision by seeing exactly where the needle will enter the fabric in every needle position. The BERNINA Pinpoint Laser marks your start and travel points as you sew and embroider.

null

Thread the needle automatically

  • You are ready for sewing in a breeze
  • Simply push a button
  • Watch the machine thread the needle

The Automatic Needle Threader helps you get started with a different thread. From a needle size of 70, the upper thread can be automatically threaded into standard embroidery needles. Conveniently and quickly, every time!

null

Walking Foot #50 included

  • Perfect fabric feed
  • Even stitch formation
  • The irreplaceable sewing companion

The Walking Foot #50 helps to achieve even fabric feed. This presser foot is especially suitable for machine-quilting straight lines and for accurately joining materials that tend to stick and move around, or which have a lot of stretch.

null

Choose & save the perfect stitch

  • Alter stitch length or stitch width
  • Alter the needle position
  • Alterations of stitch details are remembered

Your personal settings can be saved and retrieved at will and the USB connection even allows you to import and export stitches and stitch patterns or combinations.

null

Perfect tension for perfect stitches

  • Ideal tension for each stitch type
  • Achieve finest stitching results
  • A BERNINA innovation

The BERNINA Adaptive Thread Tension adjusts the tension electronically to the selected stitch width, length, speed, and needle position for each stitch.

null

Finest stitches at any speed

  • Achieve perfect, equal-length stitches
  • Perfect results no matter which speed
  • Perfection comes standard

The BERNINA Stitch Regulator (BSR) guarantees precise stitch quality and perfect results at any speed during free-motion quilting. It is optional with the BERNINA 735 PRO.


null

A screen beyond imagination

  • Extra large 7" color touch screen
  • Easy navigation with large symbols
  • Centrally & optimally located

The extra large touch screen allows you to operate the machine comfortably. Get direct tips and tricks or have short built-in tutorials show you important work steps.

null

WiFi Connectivity and BERNINA Stitchout App

  • Design transfer from/to V9 Software
  • Monitor embroidery process via App
  • Real-time status updates remotely

Since WiFi is enabled on the B 735 PRO, you can transfer designs from your BERNINA Embroidery Software 9 (optional) directly to the machine, or vice versa. And thanks to the BERNINA Stitchout App, the embroidery process can be monitored on your smartphone remotely. The in-app notifications and real-time status updates will make your embroidery more convenient.

null

Place your designs to suit your project

  • Define four points on the fabric
  • Place the design proportionally
  • Or morph to fit within the boundary

With the 4-Point Placement the positioning of your embroidery or quilting design is extremely easy and precise. This new function allows you to place your designs to precisely suit your project. Simply define four points on the fabric in the hoop and the design is placed proportionally or can be morphed to fit the created boundary.

null

More editing possibilities

  • Embroider endlessly
  • Group & ungroup designs
  • Rearrange designs

Undo or redo steps while editing or combining designs to return to your initial position. Change the stitchout sequence of design layers or use Rearrange in combination with Group & Ungroup for further editing possibilities. With the Endless Embroidery function, you can easily repeat and align embroider designs to make continuous borders.

null

Align designs as you wish

  • Both horizontally and vertically
  • Center, left, right, top, bottom
  • Align multiple lettering lines

Easily align and distribute embroidery designs horizontally and vertically. Use Multi-line Lettering and Text Alignment to personalize your text placement. With the line break, lettering of up to 10 lines is possible.



null

Smart embroidery technology even smarter

  • Perfect becomes superb
  • Another increase in embroidery speed
  • Optionally available Embroidery Module

Thanks to the BERNINA stitchprecision2 Technology, the already enhanced BERNINA Embroidery Module with Smart Drive Technology (SDT) is even faster and the stitch quality even more superior.

null

Automatic features save time

  • Automatic thread cutter
  • Presser foot lowers automatically
  • Automatic Buttonhole

The thread is automatically cut at the end of a seam or during color changes in embroidery. At the start of a seam, the presser foot lowers on its own. You can also set the length of the One-step Buttonhole quickly and repeat the exact same size as often as needed.

null

Quiet & precise

  • Sew & embroider longer
  • Ideally suited for decorative stitches
  • More time for your creativity

The BERNINA Hook sews high-precision stitches with speeds up to 1,000 stitches per minute. The front loading, easy access Jumbo Bobbin holds up to 70% more thread than standard bobbins, allowing you to sew and embroider longer.

null

Precise like a PRO!

  • Next generation stitch precision
  • Superior stitch quality
  • Even faster embroidery

The B 735 PRO features the next generation BERNINA stitchprecision2 Technology that makes your sewing, quilting and embroidery experience quieter, more precise, and joyful. Swiss innovations allow for superior stitch quality and up to 33% higher SDT embroidery speed.


Features and Functions

BERNINA 735 PRO
Important
We reserve the right to make changes to the equipment and design.
Freearm length to the right of the needle [inch / mm]
254 mm
Laser pointer
Wireless technology embedded (internal)
Needle threading, automatic (Needle size Nm 70-120)
Screen position
centrally
Start-stop button
4-Point Placement
Embroidery Status monitor / Stitchout App
Knee lever connection (FHS)
Bobbin winder, top of machine
Nadelstopp oben/unten, permanent (oben/unten)
Thread away motion
Setup- Sewing - foot control function settings
Setup- Display settings - Display brightness
Setup- Information - Needle minder
Foot control with back-kick
Weight of embroidery module [lbs/kg]
6,200 g
Weight of the machine [kg]
14,000 g
Freearm length to the right of the needle [inch / mm]
254 mm
Workspace height [inch / mm]
127 mm
Total memory [MB]
256 MB
Laser pointer
Spool holder [number]
2
Wireless technology embedded (internal)
Main motor, Type
DC
Separate bobbin winding motor
Hammer-mode for piercing force
Needle threading, automatic (Needle size Nm 70-120)
Automatic thread cutting system (upper and lower thread)
Adaptive thread tension, dynamic
Hook system
BERNINA
Presser foot lift, automatic
Screen position
centrally
Screen size [inch]
7 inch
Number of LEDs
30
Illumination above the needle
Slide speed control
Sensor upper thread control
Sensor bobbin thread control
USB-Anschluss (Host)
Adjust stitch length
Balance forward / reverse feed
Pattern end
Adjust stitch width
Triple Stitch
Reverse sewing, permanent
Backstepping, permanent
Pattern elongation
Gesamtzahl der Knopflöcher
13
Buttonhole manual-multistep (man)
Buttonhole automatic with 3A feet (auto)
Button measuring function on screen
Buttonhole slit width adjustment
Securing stitch (stitch #5)
Needle positions (right / left) [number]
11
Memory (Kurzzeitspeicher)
Save settings of current stitch (permanent)
Add current stitch (personal program)
Import / export of stitches and stitch combination via USB (EXP format)
Presser foot recommended (display)
Save combination
Sewing stitches and characters in total [number]
1753
Presser foot selection
BSR functionality
BSR mode1
BSR speed (max spm)
1,000 spm
BSR mode 2
BSR mode 3
KickStart
Creative consultant Sewing
Setup- Sewing - auto securing settings
Freearm circumference in the needle position [mm]
275 mm
Sewing speed maximum [spm]
1,000 spm
Delete by Swiping
Fit to window
Presser foot system
Full shank
Hopper mechanism
Pivot / hover function
Start-stop button
Quick Reverse button (hand operated securing)
Practical Stitches
32
Quilting Stitches
37
Button Sew-On Program
1
Darning Programs
2
Freearm embroidery
Read competition embroidery formats (stitch based)
Save design
Restore last embroidery position
Hoop recognition
Absolute check
Mega Hoop functionality (6 x 15.7 inch / 400 x 150mm)
Maxi Hoop functionality (8.3 x 15.7 inch / 400 x 210mm)
Jumbo Hoop functionality (10 x 15.7 inch / 400 x 260mm)
Midi Hoop Funktionalität (10,5 x 6,5 Zoll / 265 x 165mm)
Freearm Hoop functionality (5.7 x 10 inch / 145 x 255mm)
Small Freearm Hoop functionality ( )
Clamp Hoop S functionality (6.5 x 6.5 inch / 165 x 165mm )
Check box
Basting stitch inside hoop / around design
Embroidery sequence control
CutWork Tool support
Built-in Embroidery alphabets (horizontal&vertical=1)
10
Built-in Embroidery designs
400
Move pattern
Change design stitch order
Advanced design positioning assistant "Pinpoint Placement" or similar
Pinpoint Placement: lock scaling
4-Point Placement
Customizable quilting designs (BQM)
Resize pattern: proportional (limited to 80%-120%)
Resize pattern: non-proportional (limited to 80%-120%)
Stichdichte einstellen
Wordart
QWERTY keyboard
Multi Line text (as a group)
Combination of designs and lettering, embroidery
Endless embroidery function
Group layers
Change thread colours
Monochrom
Color resequencing
Creative consultant, embroidery
Setup- Embroidery - centering the embroidery motif / restore the original position
Setup- Embroidery - Thread away motion on/off
Setup- Embroidery - inch/mm switch
Setup- Embroidery - set SPI for customizable quilt designs
Setup- Embroidery - Thread cutter by colour change on/off
Setup- Embroidery - Thread cutter - set length of the jump stitch
Setup- Embroidery - Securing stitches manually /automatically
Embroidery field max, effective space [inch / mm]
400 mm x 210 mm
Embroidery speed maximum [spm]
1,000 spm
Drag and drop, (swipe operation), embroidering
Embroidery design transfer between machine and Embroidery Software (from V9)
Embroidery Status monitor / Stitchout App
Slide-on table
Free Hand System (FHS) knee lifter
Dust brush
Needle assortment
Dust cover machine
Accessory box
