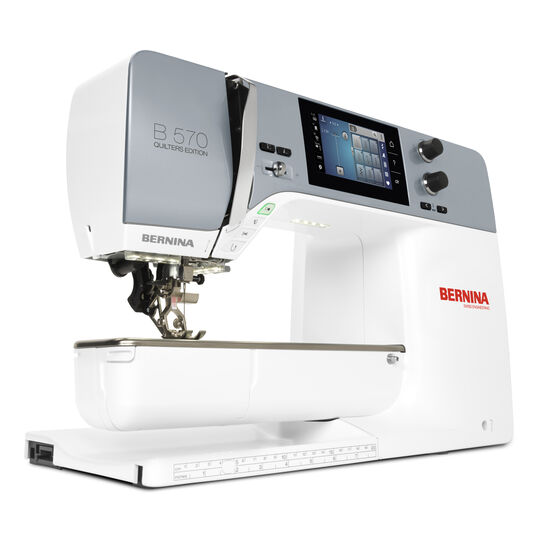

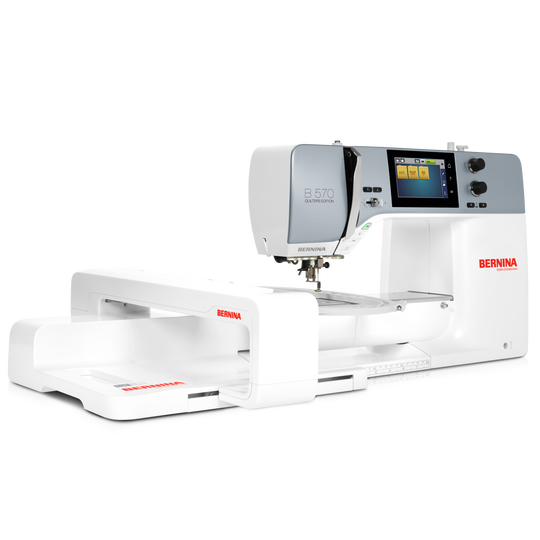

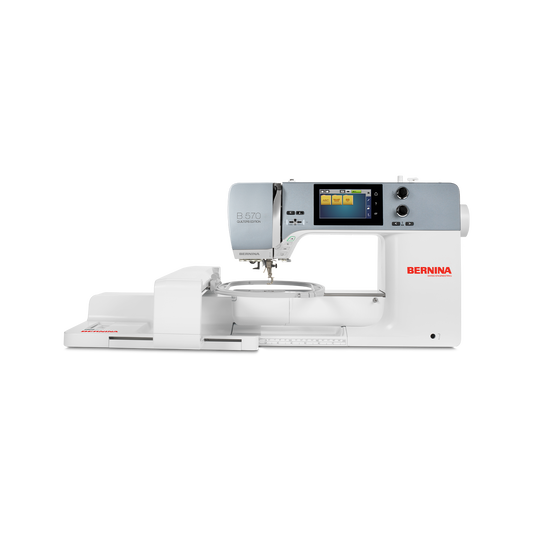

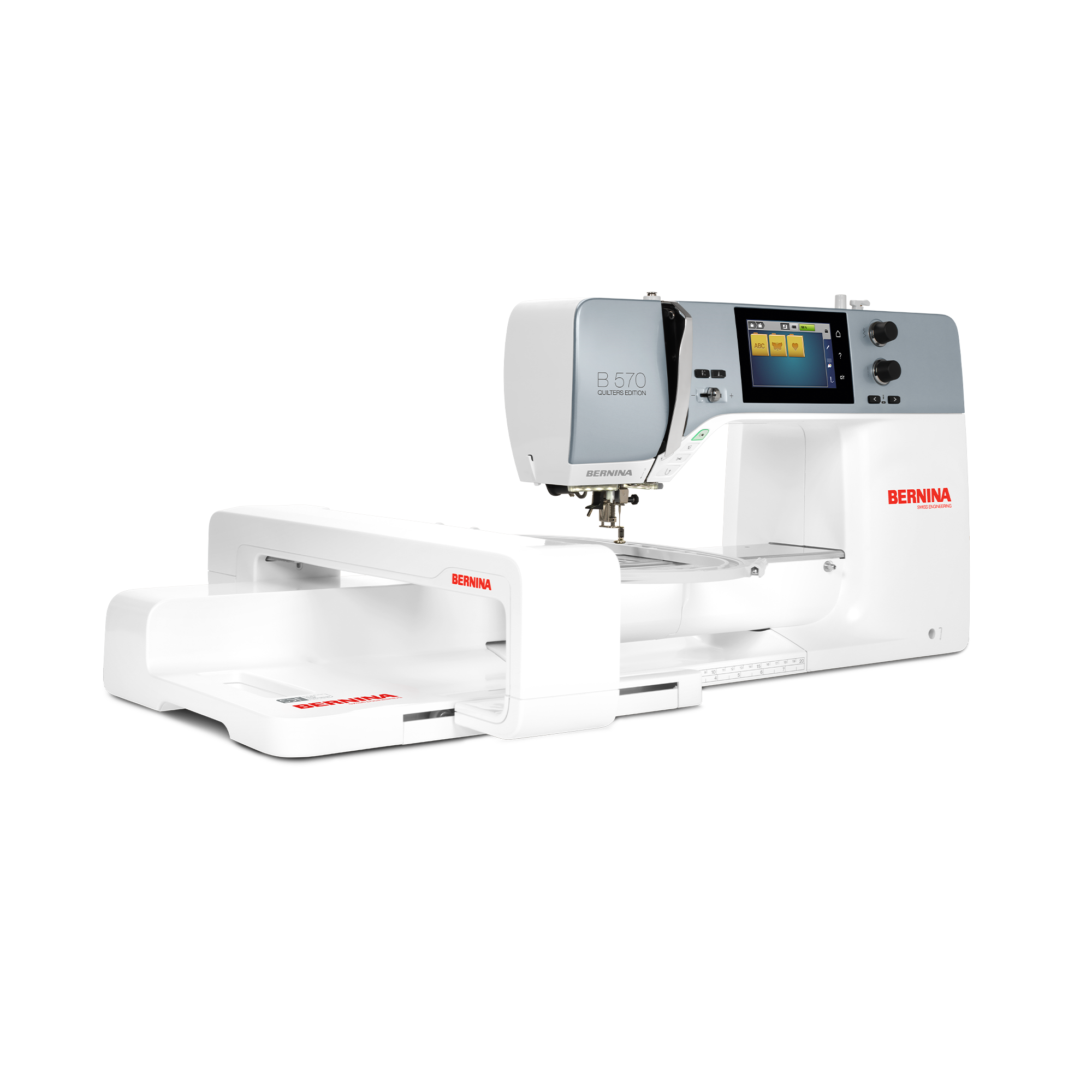

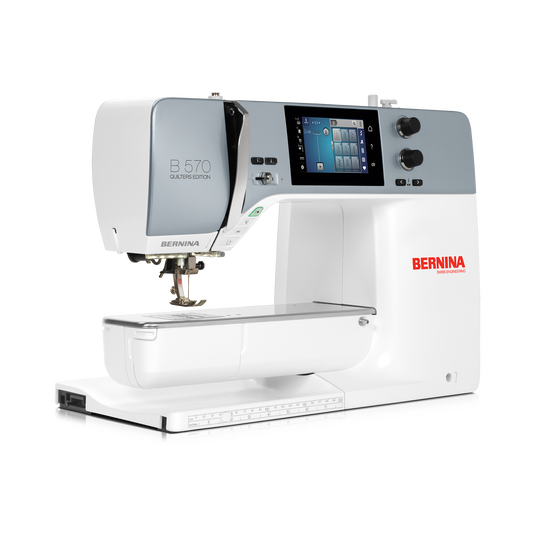

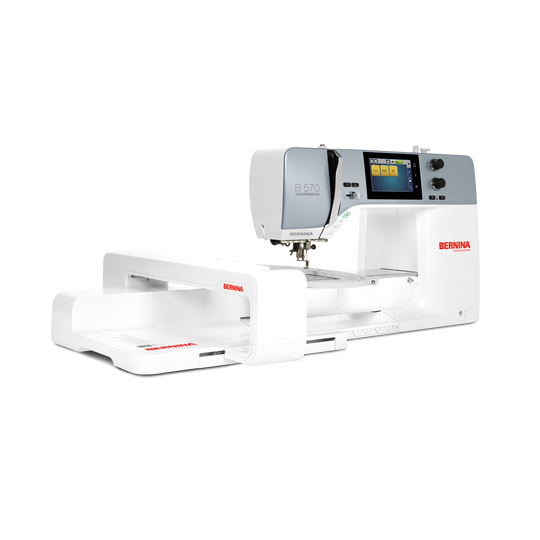

BERNINA 570 QE with Embroidery Module

BERNINA 570 QE with Embroidery Module
Item No. 8800507
The link to BERNINA 570 QE with Embroidery Module has been copied
3'995.00 CHF
Availability in online store:
  • In Stock
BERNINA 570 QE with Embroidery Module
Item No. 8800507
BERNINA 570 QE with Embroidery Module image number

Product Description

Description

Made especially for quilters

Features

  • Enjoy superb fabric feed
  • Handle big quilts with ease
  • Your threads are cut automatically
  • Precise and perfect stitches
  • Patchwork Foot #97D included
null

Keep your hands on the fabric

  • Adjust your quilt safely
  • Tiny adjustments can be done quickly
  • Rotate, turn & do appliqués easily

Thanks to the hover function the foot raises, but the needle stays in the fabric, making it easy to maneuver and turn as you appliqué and quilt.

null

BERNINA Stitch Regulator functionality

  • Perfection in free-motion sewing
  • Automatic regulation of the stitch length
  • Use with BERNINA Stitch Regulator (BSR)

The BSR functionality is integrated in the machine, the BERNINA Stitch Regulator (BSR) is an optional accessory. It ensures stitches of exactly the same length at variable sewing speed.

null

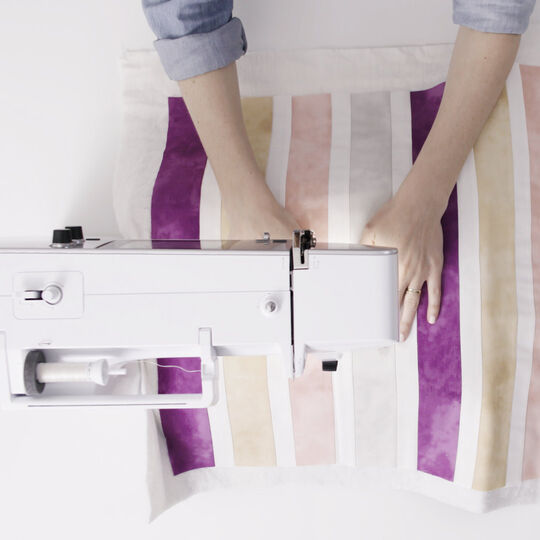

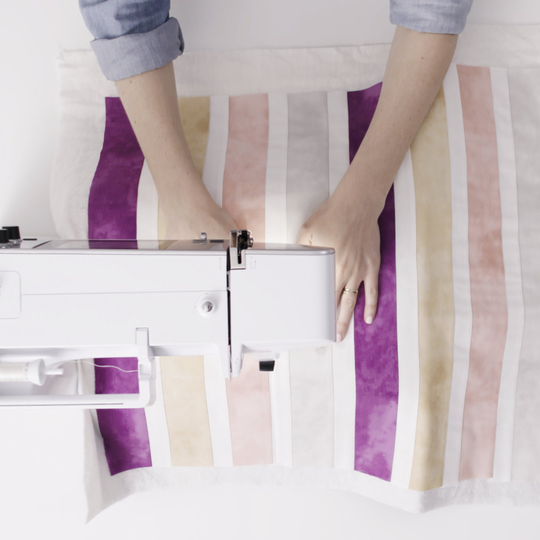

Enough space for bigger projects

  • Handle big quilts with ease
  • Live up to your quilt creativity
  • Enough room for comfortable quilting

The B 570 QE with its extended freearm offers 8.5" right of the needle. Perfect to handle big quilting projects with the greatest of ease.

null

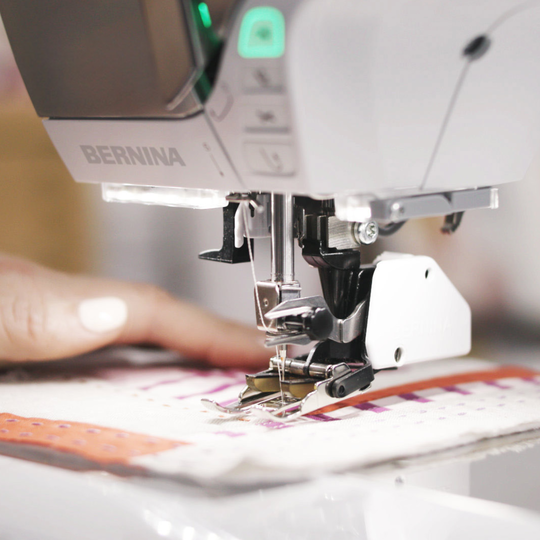

Quilt all materials with ease

  • Enjoy superb fabric feed on both sides
  • Quilt many layers without puckers
  • Excellent for slippery or fine materials

The innovative BERNINA Dual Feed feeds the fabric evenly from above and below. It is easy to engage and tucks away when not in use.

null

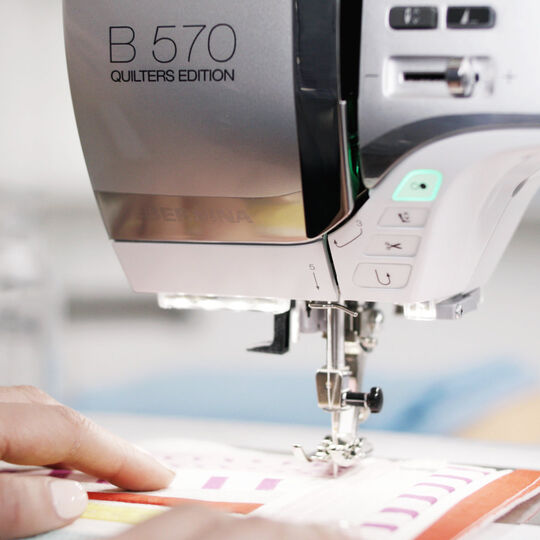

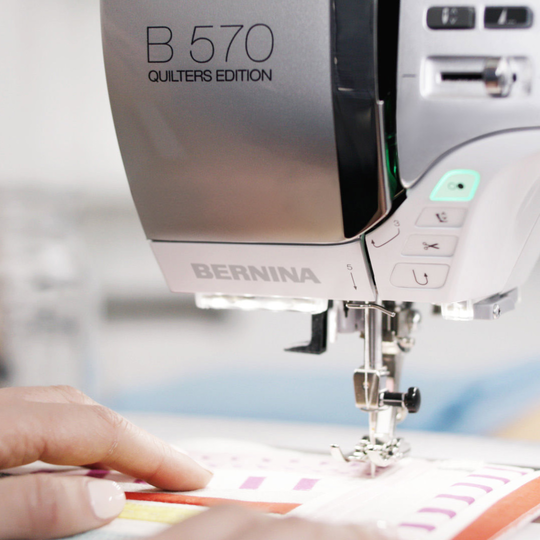

Automatic features save time

  • Thread is cut automatically
  • Save time for your creative ideas
  • More time to focus on your quilt

Thanks to the automatic thread cutter, your thread is cut with an easy one-button operation. Keeps your work flowing easily and saves time.

null

Quilters love Patchwork Foot #97D

  • Designed for straight-stitching
  • Ideal for sewing 1/4" seam allowances
  • Extra insurance to experienced piecers

The Patchwork Foot #97D is the special accessory for the most accurate feeding and stitching when piecing patchwork blocks.


Features and Functions

BERNINA 570 QE with Embroidery Module
Important
We reserve the right to make changes to the equipment and design.
BDF / Dual Feed, integrated
Setup- Sewing - foot control function settings
Freearm length to the right of the needle [inch / mm]
215.8 mm
Screen position
centrally
Sensor bobbin thread control
Pivot / hover function
Start-stop button
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Knee lever connection (FHS)
Bobbin winder, top of machine
Nadelstopp oben/unten, permanent (oben/unten)
Thread away motion
Setup- Sewing - foot control function settings
Setup- Display settings - Display brightness
Setup- Information - Needle minder
Foot control with back-kick
Weight of embroidery module [lbs/kg]
4,000 g
Weight of the machine [kg]
11,000 g
Freearm length to the right of the needle [inch / mm]
215.8 mm
Workspace height [inch / mm]
109.22 mm
Total memory [MB]
256 MB
Spool holder [number]
2
Main motor, Type
DC
Separate bobbin winding motor
Hammer-mode for piercing force
Needle threading, semi-automatic
Automatic thread cutting system (upper and lower thread)
Adaptive thread tension, dynamic
Hook system
BERNINA
Presser foot lift, automatic
Screen position
centrally
Screen size [inch]
4.3 inch
ECO function
Number of LEDs
12
Illumination above the needle
Slide speed control
Sensor upper thread control
Sensor bobbin thread control
USB-Anschluss (Host)
Adjust stitch length
Balance forward / reverse feed
Pattern end
Adjust stitch width
Triple Stitch
Reverse sewing, permanent
Backstepping, permanent
Pattern elongation
Gesamtzahl der Knopflöcher
14
Buttonhole manual-multistep (man)
Buttonhole automatic with 3A feet (auto)
Button measuring function on screen
Buttonhole slit width adjustment
Securing stitch (stitch #5)
Needle positions (right / left) [number]
11
Memory (Kurzzeitspeicher)
Save settings of current stitch (permanent)
Add current stitch (personal program)
Import / export of stitches and stitch combination via USB (EXP format)
Presser foot recommended (display)
Save combination
Sewing stitches and characters in total [number]
1450
Presser foot selection
BSR functionality
BSR mode1
BSR speed (max spm)
1,000 spm
BSR mode 2
Creative consultant Sewing
Freearm circumference in the needle position [mm]
276 mm
Sewing speed maximum [spm]
1,000 spm
Delete by Swiping
Fit to window
Presser foot system
Full shank
Hopper mechanism
Pivot / hover function
Start-stop button
Quick Reverse button (hand operated securing)
Practical Stitches
35
Quilting Stitches
74
Button Sew-On Program
1
Darning Programs
2
Freearm embroidery
Read competition embroidery formats (stitch based)
Save design
Restore last embroidery position
Hoop recognition
Absolute check
Mega Hoop functionality (6 x 15.7 inch / 400 x 150mm)
Midi Hoop Funktionalität (10,5 x 6,5 Zoll / 265 x 165mm)
Freearm Hoop functionality (5.7 x 10 inch / 145 x 255mm)
Clamp Hoop S functionality (6.5 x 6.5 inch / 165 x 165mm )
Check box
Basting stitch inside hoop / around design
Embroidery sequence control
CutWork Tool support
Built-in Embroidery alphabets (horizontal&vertical=1)
7
Built-in Embroidery designs
250
Move pattern
Resize pattern: proportional (limited to 80%-120%)
Resize pattern: non-proportional (limited to 80%-120%)
Stichdichte einstellen
Wordart
Combination of designs and lettering, embroidery
Change thread colours
Monochrom
Color resequencing
Setup- Embroidery - centering the embroidery motif / restore the original position
Setup- Embroidery - Thread away motion on/off
Setup- Embroidery - inch/mm switch
Setup- Embroidery - Thread cutter by colour change on/off
Setup- Embroidery - Thread cutter - set length of the jump stitch
Setup- Embroidery - Securing stitches manually /automatically
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Embroidery speed maximum [spm]
1,000 spm
Drag and drop, (swipe operation), embroidering
Slide-on table
Free Hand System (FHS) knee lifter
Dust brush
Needle assortment
Dust cover machine
Accessory box

Tutorials

Please accept performance cookies to show the video
Sewing tutorial: first steps with the B 500, B 535, B 540, B 570 Q and B 590
http://www.bernina.com/new5series | To make getting started with your new BERNINA sewing machine particularly easy, we show you the first steps in this video tutorial – from attaching the sewing foot, winding the thread and using the bobbin, through to threading the machine correctly. This video shows details on where the thread travels, how to use the thread net (if required), and how to adjust the bobbin winder speed. Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Sewing tutorial: first steps with the B 500, B 535, B 540, B 570 Q and B 590
Sewing tutorial: Screen functions of the B 500, B 535, B 540, B 570 Q and B 590
Please accept performance cookies to show the video
Sewing tutorial: quilting with the B 535, B 540, B 570 QE and B 590
http://www.bernina.com/new5series | Presser foot # 97 is perfectly suited to patchworking. In these video instructions you will see how to attach the presser foot and align the fabric edges correctly. With the help of the BERNINA Dual Feed, the fabric is transported from above and below at the same time, which means that you will require a presser foot with the “D” designation. In this video we also show you how to adjust the presser foot to particularly thick fabric and how you can easily do free-motion quilting with the help of the BERNINA Stitch Regulator. When free-motion sewing, the stitching speed automatically adapts to the speed that the fabric is moving. Choose from: Mode 1 where the sewing machine sews continuously and mode 2 where it only sews when the fabric is moved. For more information on the BERNINA patchwork foot 97, please watch this video: https://www.youtube.com/watch?v=-04idswIN5g Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Sewing tutorial: quilting with the B 535, B 540, B 570 QE and B 590
Please accept performance cookies to show the video
Sewing tutorial: Buttonholes with the B 535, B 540, B 570 QE and B 590
http://www.bernina.com/new5series | Sewing buttonholes with your BERNINA machine is child’s play and very customisable. This video shows you how to choose from a selection of buttonholes and how to set the buttonhole width and length. The slit width of the cutting gap is also very easy to change. Once the buttonhole has been programmed, you can then sew it in one pass, and repeat it as often as you want. You can also save the same buttonhole settings for future use. Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Sewing tutorial: Buttonholes with the B 535, B 540, B 570 QE and B 590
Sewing tutorial: changing and saving stitches with the B 535, B 540, B 570 QE and B 590
Sewing tutorial: decorative stitches on the B 535, B 540, B 570 QE and B 590 (video tutorial)
Please accept performance cookies to show the video
Embroidery tutorial: editing designs with the B 500, B 535, B 540, B 570 QE and B 590
http://www.bernina.com/new5series | For particularly creative embroidery, this video shows you how to add as many letters and other patterns as you want to an existing embroidery pattern. Each embroidery pattern can be selected and edited by dragging and dropping them directly onto the screen. You will also find out how to select the right embroidery frame, change the length of the connection stitches, if necessary, or embroider a multicoloured pattern in just one colour. Practical: Thanks to the new embroidery module, free-arm embroidery is possible with all embroidery frames without the need for extra devices! Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Embroidery tutorial: editing designs with the B 500, B 535, B 540, B 570 QE and B 590
Embroidery tutorial: first steps with the B 500, B 535, B 540, B 570 Q and B 590
Please accept performance cookies to show the video
Cleaning and oiling the B 435, B 475 QE, B 480 and B 485
http://www.bernina.com/4series | For better sewing results and smooth sewing, it is necessary to clean and oil your BERNINA sewing machine on a regular basis. Watch this video to learn how to properly maintain your machine by cleaning and oiling the hook and the hook race. The thread catcher needs to be cleaned frequently, too! This video shows you how to go about this. You can find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Please also take a look at the other video tutorials in this YouTube playlist! Once you've watched all videos in our playlist, you will be ready to get started with your sewing projects, using the full potential of your BERNINA 4 Series machines. Happy stitching! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Cleaning and oiling the B 435, B 475 QE, B 480 and B 485
