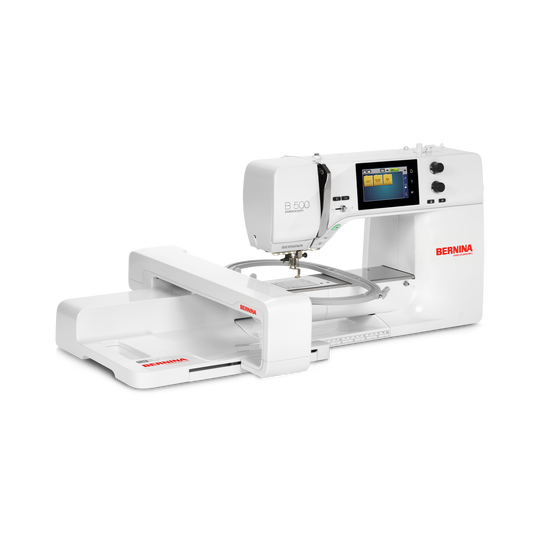

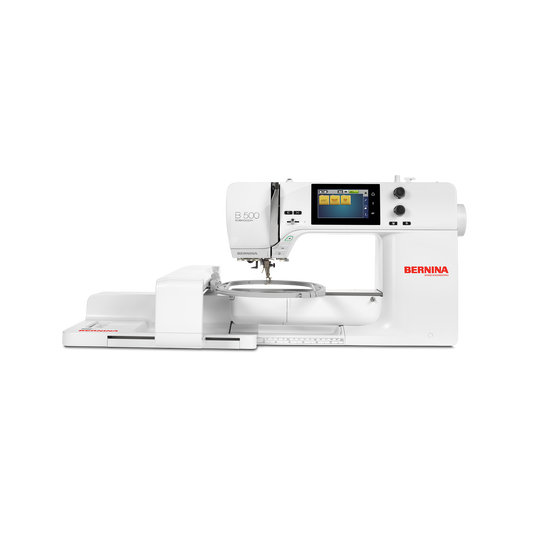

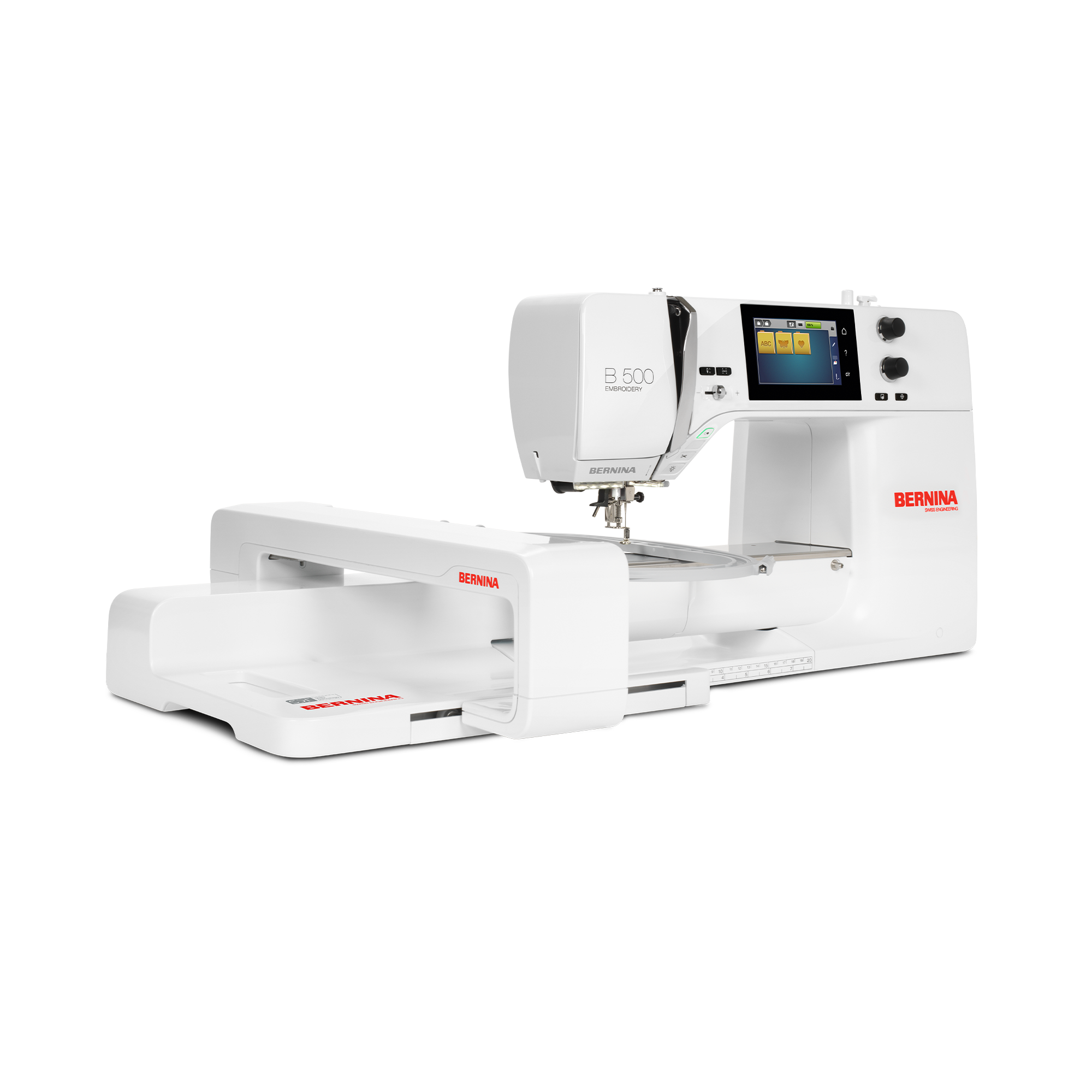

BERNINA 500 with Embroidery Module

BERNINA 500 with Embroidery Module
Item No. 8800506
The link to BERNINA 500 with Embroidery Module has been copied
2'195.00 CHF
Availability in online store:
  • In Stock
BERNINA 500 with Embroidery Module
Item No. 8800506
BERNINA 500 with Embroidery Module image number

Product Description

Description

The BERNINA embroidery machine for embroidery designs up to 150 x 400 mm and with an easy-to-operate touch screen

Features

  • More space for bigger embroidery projects
  • Jumbo bobbin to embroider longer
  • Edit embroidery designs via touch screen
  • Position your design exactly where you want
  • Achieve finest embroidery results
null

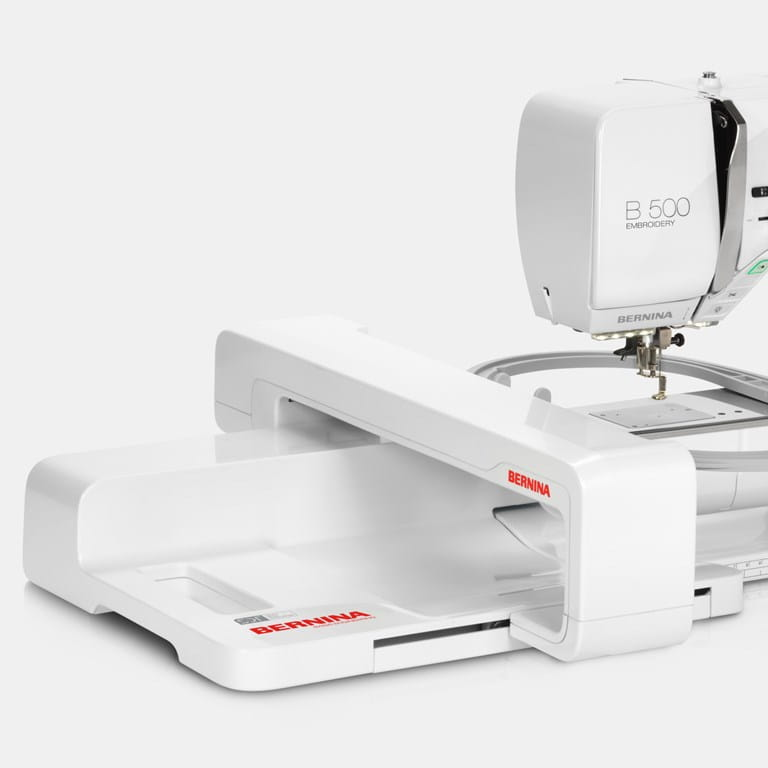

More space for creative freedom

  • Handle big projects with ease
  • Comfortably create endless designs
  • Re-designed embroidery module

The extended freearm offers 8.5" right of the needle. Enjoy a large embroidery area of 15.75" x 5.9" to bring your embroidery ideas to life.

null

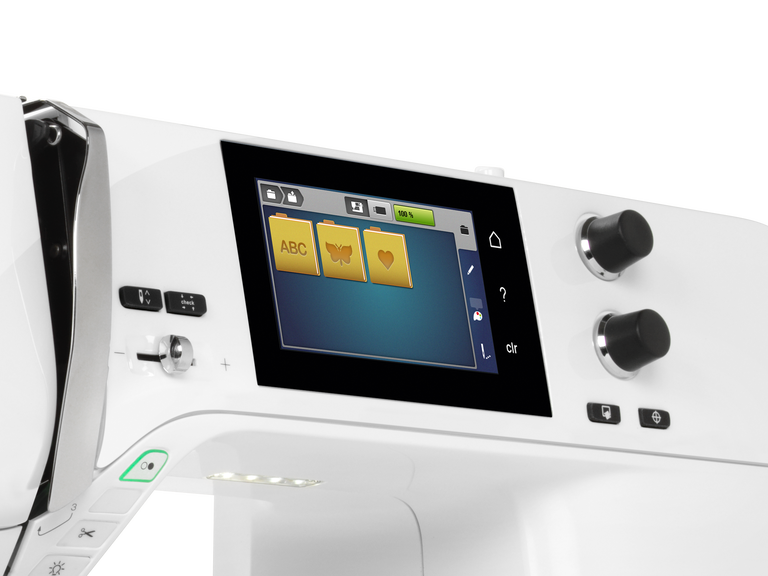

Edit your designs with ease

  • Simply undo & redo steps
  • Edit designs as a group or break apart
  • Customize the stitch-out sequence

With the Enhanced Editing Functions you can realize your ideas directly on screen and use your creativity to create new designs.

null

Easy design positioning

  • Position your design easily and exactly
  • No need to use the template anymore
  • Perfect results in short times

Use Pinpoint Placement to position your design precisely: select two points and match them with the markings on the hooped fabric.

null

Automatic features save time

  • Automatic thread cutting
  • Needle lifts automatically
  • Easy one-button operation

The automatic thread cutter operates with two steps in one: cuts the thread and lifts the needle.

null

Perfection is the new standard

  • No manual trimming on the top side
  • Manage thread cuts easily
  • Invisible Secure for perfect results

Thanks to the Thread Away Mode and Invisible & Smart Secure, clean embroidery results on the top are yours with the B 590 E.

null

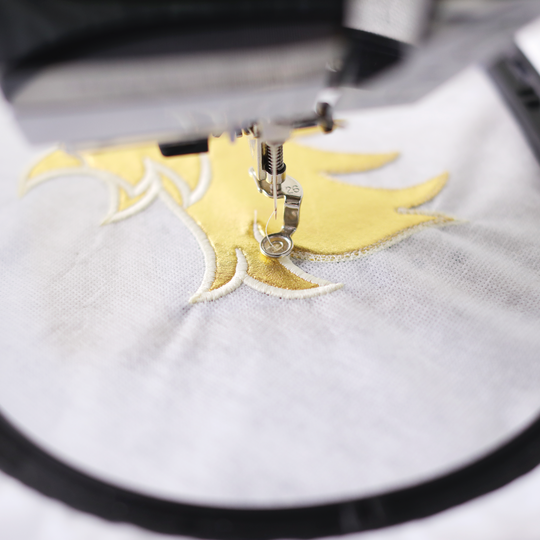

Finest embroidery results for you

  • Perfect stitches, fast & quiet
  • Jumbo bobbin to embroider longer
  • Frontload the bobbin with new thread

The BERNINA Hook keeps the stitches consistent and precise with a maximum speed of 1,000 stitches per minute.


Features and Functions

BERNINA 500 with Embroidery Module
Important
We reserve the right to make changes to the equipment and design.
Screen position
centrally
Sensor upper thread control
Freearm embroidery
Built-in Embroidery designs
275
Advanced design positioning assistant "Pinpoint Placement" or similar
Endless embroidery function
Colour Wheel: change the colours of the design
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Bobbin winder, top of machine
Thread away motion
Setup- Display settings - Display brightness
Weight of embroidery module [lbs/kg]
4,000 g
Weight of the machine [kg]
11,000 g
Freearm length to the right of the needle [inch / mm]
215.8 mm
Workspace height [inch / mm]
109.22 mm
Total memory [MB]
256 MB
Spool holder [number]
2
Main motor, Type
DC
Separate bobbin winding motor
Hammer-mode for piercing force
Needle threading, semi-automatic
Automatic thread cutting system (upper and lower thread)
Adaptive thread tension, dynamic
Hook system
BERNINA
Screen position
centrally
Screen size [inch]
3.5 inch
Number of LEDs
12
Illumination above the needle
Slide speed control
Sensor upper thread control
Sensor bobbin thread control
USB-Anschluss (Host)
Freearm circumference in the needle position [mm]
276 mm
Delete by Swiping
Fit to window
Presser foot system
Full shank
Hopper mechanism
Start-stop button
Freearm embroidery
Read competition embroidery formats (stitch based)
Save design
Restore last embroidery position
Hoop recognition
Absolute check
Mega Hoop functionality (6 x 15.7 inch / 400 x 150mm)
Midi Hoop Funktionalität (10,5 x 6,5 Zoll / 265 x 165mm)
Freearm Hoop functionality (5.7 x 10 inch / 145 x 255mm)
Clamp Hoop S functionality (6.5 x 6.5 inch / 165 x 165mm )
Check box
Basting stitch inside hoop / around design
Embroidery sequence control
CutWork Tool support
Built-in Embroidery alphabets (horizontal&vertical=1)
8
Built-in Embroidery designs
275
Move pattern
Change design stitch order
Advanced design positioning assistant "Pinpoint Placement" or similar
Resize pattern: proportional (limited to 80%-120%)
Resize pattern: non-proportional (limited to 80%-120%)
Stichdichte einstellen
Wordart
Combination of designs and lettering, embroidery
Endless embroidery function
Group layers
Change thread colours
Monochrom
Color resequencing
Colour Wheel: change the colours of the design
Creative consultant, embroidery
Setup- Embroidery - centering the embroidery motif / restore the original position
Setup- Embroidery - Thread away motion on/off
Setup- Embroidery - inch/mm switch
Setup- Embroidery - Thread cutter by colour change on/off
Setup- Embroidery - Thread cutter - set length of the jump stitch
Setup- Embroidery - Securing stitches manually /automatically
Embroidery field max, effective space [inch / mm]
165 mm x 265 mm
Embroidery speed maximum [spm]
1,000 spm
Drag and drop, (swipe operation), embroidering
Dust brush
Dust cover machine
Accessory box

Tutorials

Please accept performance cookies to show the video
Cleaning and oiling the B 435, B 475 QE, B 480 and B 485
http://www.bernina.com/4series | For better sewing results and smooth sewing, it is necessary to clean and oil your BERNINA sewing machine on a regular basis. Watch this video to learn how to properly maintain your machine by cleaning and oiling the hook and the hook race. The thread catcher needs to be cleaned frequently, too! This video shows you how to go about this. You can find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Please also take a look at the other video tutorials in this YouTube playlist! Once you've watched all videos in our playlist, you will be ready to get started with your sewing projects, using the full potential of your BERNINA 4 Series machines. Happy stitching! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Cleaning and oiling the B 435, B 475 QE, B 480 and B 485
Please accept performance cookies to show the video
Embroidery tutorial: first steps with the B 500, B 535, B 540, B 570 Q and B 590
http://www.bernina.com/new5series | Do you want to use your BERNINA sewing machine to embroider for the first time? This video tutorial shows how easy it is: The embroidery module is attached, the stitch plate removed and a straight stitch plate inserted in its place. Practical: When switched on, your BERNINA automatically changes to embroidery mode, which allows you to set the lettering, integrated embroidery patterns and sewing patterns. This video also shows you how to use embroidery files from a USB stick, how to thread the upper and lower threads, and how to start embroidering. As the starting thread is sewn invisibly, this automatically creates a beautiful, clean embroidered result. Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Embroidery tutorial: first steps with the B 500, B 535, B 540, B 570 Q and B 590
Sewing tutorial: Screen functions of the B 500, B 535, B 540, B 570 Q and B 590
Please accept performance cookies to show the video
Embroidery tutorial: grouping and ungrouping designs with the B 500 and B 590
http://www.bernina.com/new5series | The BERNINA 500 and 590 allow you to group and ungroup embroidery patterns. In this tutorial we show you how easy it is to do so and how this can benefit your embroidery work. By grouping and ungrouping embroidery patterns in different layers, you can, for example, simply delete individual patterns or change the order of embroidery pattern combinations. This function is particularly helpful with embroidered names because you can easily move individual characters to adjust the space between letters. Find out more about BERNINA products and lots of instructions and free patterns for your textile creations at http://www.bernina.com – or have your local specialist retailer show you one of our sewing machines. Also take a look at the other video tutorials in this YouTube playlist! Please note that not all the models mentioned in the title have all of the functions shown in the video. Rights reserved relating to changes with regard to model functions and equipment.
Embroidery tutorial: grouping and ungrouping designs with the B 500 and B 590
Embroidery tutorial: editing designs with the B 500, B 535, B 540, B 570 QE and B 590
Embroidery tutorial: endless embroidery with the Mega Hoop and B 500 and B 590
Embroidery tutorial: Pinpoint Placement of embroidery designs with the B 500 and B 590

DOWNLOADS

User manual B500 pdf
